Metal extruder - left

Add to favourites Add to compare list

Metal extruder - left

star 1 star 2 star 3 star 4 star 5 (1)Rating value is 5 of 5

Metal extruder for a filament with a diameter of 1.75 mm. It designed for direct mounting on a stepper motor with flange NEMA 17th More

Product code: 98Shipping and Payment

€ 10,95

Not in stock Watch availability - Time of delivery within 7-10 days.
ks

Metal extruder for a filament with a diameter of 1.75 mm. It designed for direct mounting on a stepper motor with flange NEMA 17th More

Product code: 98Shipping and Payment

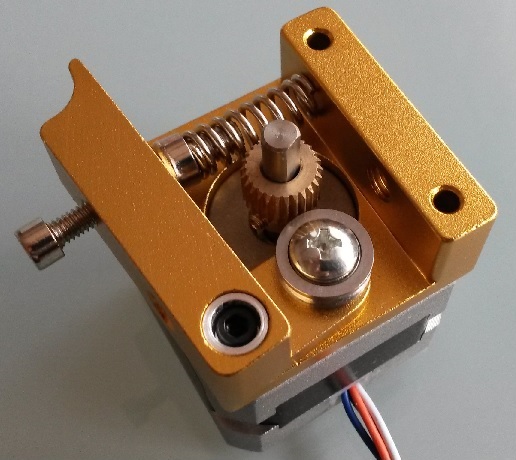

Metal extruder with a direct mounting on the stepper motor. The extruder is designed for 1.75 mm filament diameter.

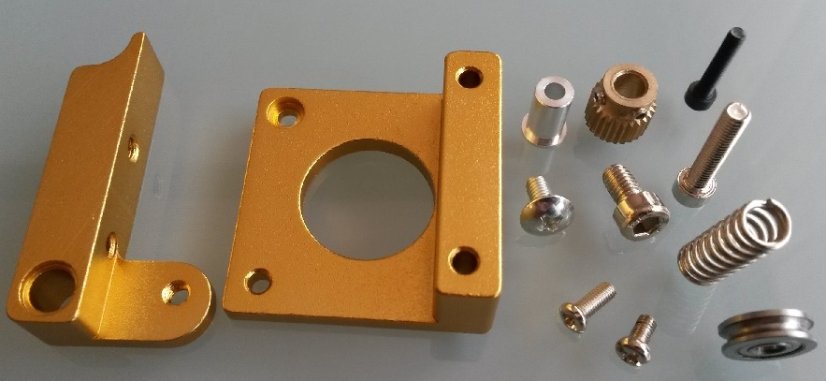

Extruder is easy to mount on a stepper motor, and only takes a few minutes. The package contains all the necessary screws, feeding wheel, thrust wheel and spring.

Feed wheel dimensions:

External diameter: 11 mm

Effective diameter: 10 mm

Length: 11 mm

Module: 0.4

Number of Teeth: 21

Material: Brass

Security: worm M3

Motor not included.

Reviews

star 1 star 2 star 3 star 4 star 5 Rating value is 5 of 5

Positives

Negatives- za tuto cenu by součástí balení mohl být i nástavec pro uchycení teflonové trubičky.
- šroub pro uchycení pružiny byl delší a musel jsem ho n ...more

Was this review helpful? Yes(0) No(0)
